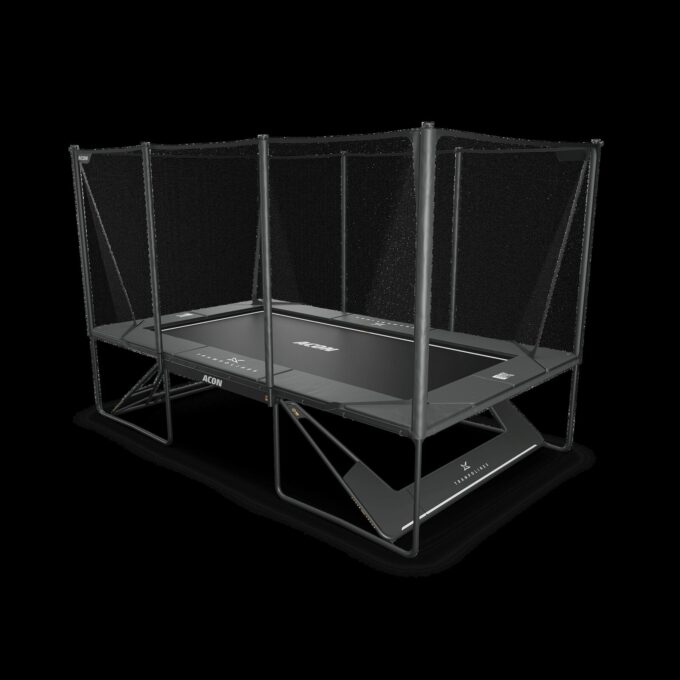

ACON X 17ft Black Rectangular Trampoline Review (2026)

Full Review

PT Score: 6.5 / 10

The ACON X is the trampoline ACON builds when it stops thinking about backyards and starts thinking about gymnasts. It’s a Finnish design house with 27 years behind it (Oulu, Finland for the design and engineering, China for the manufacturing under their own quality oversight), and the X line is the newest, most expensive tier they sell to the public. Above the ACON Air recreational rounds. Above the Air Sport HD rectangles. The X sits at the top.

Here’s the thing about ACON, and longtime readers of our ACON Air 16 Sport HD review already know this: they design like Finnish furniture. Function over form, every time. Their rectangles have historically been famous for refusing to print a single-user weight limit, just a structural one in four figures, because the frame genuinely shrugs off normal loads. The X breaks that pattern slightly (more on that below), but the DNA is the same. This is engineering-first kit, and it shows.

After working through the manufacturer specs, the warranty structure, the made-in-China honesty, and stacking it against the three other premium 10×17-class rectangles we cover, we land at a 6.5 out of 10 under our weakest-component scoring. The frame is the limiting factor, and not because we think it’s weak. We score it at floor because ACON won’t tell us the steel-tube gauge, and our methodology doesn’t reward specs we can’t verify. A buyer cross-shopping the AlleyOOP PowerBounce 10×17, which publishes 2.5mm walls on 2-inch tubes right on the listing, deserves to know that gap exists.

Key Specifications

A quick note on the price line. ACON’s own US store and the Amazon listing for the same product, the Black-frame ACON X 17ft (ASIN B0D3H6322D), both put it in the four-figure bracket, within roughly a hundred dollars of each other, with the Amazon listing usually the slightly higher of the two. We’re not going to quote a live figure that’ll be stale by next week, but the practical takeaway is simple: this is a premium-tier trampoline at a premium-tier price wherever you buy it, and there’s no “get it cheaper on Amazon” angle to chase here. We’ll come back to what that does to the value math at the end.

Who Is It For?

Picture the household this trampoline was actually built for. There’s a five-year-old who wants to flop around safely, a ten-year-old practising cartwheels, and a teenager who’s started watching tumbling videos and asking for a “real” trampoline. One backyard, three very different jumpers. The ACON X is the one piece of kit that can serve all three without compromise, because the deck height (and the per-user weight ceiling that comes with it) physically reconfigures.

That’s the headline. ACON developed the X line in partnership with Olympic-level gymnasts, and the rigid Super X-Frame plus the 4 ft performance height (with the kit fitted) gives the kind of clean, energetic rebound that lets a jumper chain moves rather than fighting a soft mat. It’s not a true Olympic-spec gymnastic trampoline. Those are made by the likes of Eurotramp, they cost several thousand dollars more, and they belong in a sprung gym hall, not a garden. But for serious backyard gymnastics practice short of going commercial-grade, the X is genuinely one of the best things you can buy.

Rectangular trampolines, as we’ve said in every rectangle review we’ve published, hand you the consistent edge-to-edge bounce of a square frame with a more usable layout. They’re for people who already have some jumping experience and want to do things, not just bounce. The X is squarely in that camp, with the bonus that the 2 ft toddler setting lets the youngest member of the family in on it without anyone holding their breath.

The X also makes sense as an upgrade path. If you’ve owned an older ACON Air rectangle for years and the mat or pad is finally tired, the X-line warranty resets the clock, and the 3-way height adjustment is a real generational step up rather than a rebadge. Loyal ACON owners aren’t being asked to switch brands to get something new.

Design

We’ll be honest, the way we were honest about the olive-green Air 16: the ACON X isn’t designed to turn heads. The Black-frame version (ASIN B0D3H6322D, the one this review covers) is restrained to the point of austere. Black frame, black mat, a low-key powder-coated finish. There’s also a Light Grey version (ASIN B0D3H8CFC1) if you want something a shade softer. Neither is what you’d call exciting.

Some buyers will love that. Most backyard trampolines are a wall of generic blue, and the X reads more like a piece of equipment than a toy, which is exactly the impression ACON wants. It’s the Finnish way, function over form, the same joke we’ve made before and the same truth behind it. ACON do hold design patents, including the patent-pending zero-gap enclosure that we’ll get to, so this isn’t an absence of design thinking. It’s design thinking that’s gone somewhere other than looks.

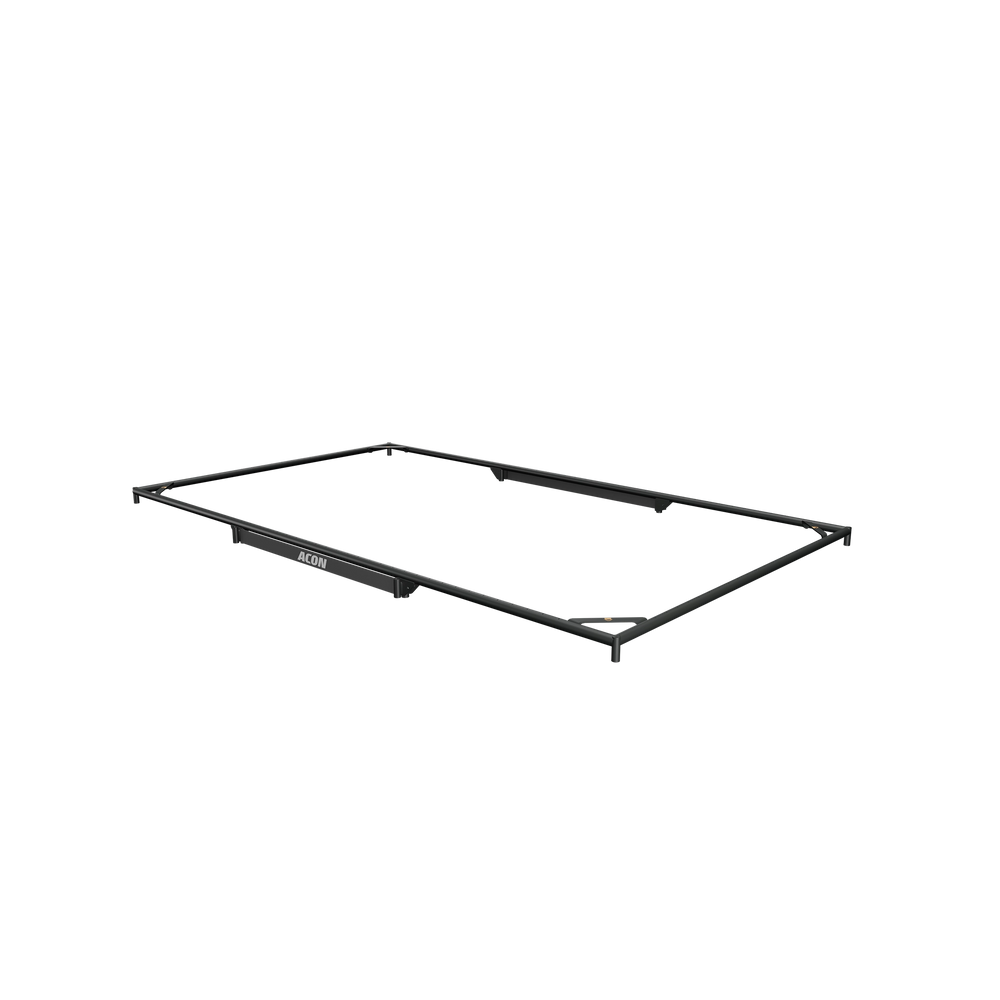

Sturdiness and the Super X-Frame

The first thing that’ll tell you how this trampoline is built is the bill of lading. It ships at 661 lbs. You feel that the moment the boxes arrive, and you’ll feel it again the day you decide the trampoline is in the wrong spot, because by then it isn’t moving without a crew. Weight correlates to sturdiness on a trampoline more than almost any other single thing, and 661 lbs is a serious number for a 17 footer.

ACON’s pitch for the X frame is the “Super X-Frame”: a rigid steel structure designed to eliminate the flex you get in a conventional jointed frame, so more of the energy you put in comes back as height rather than getting absorbed by the frame twisting under you. That’s a sound principle, and the static structural capacity of 3,000 lbs backs up the idea that the skeleton is overbuilt for normal use. Put it on flat, level ground (a slope turns any trampoline into a slow-motion swing set, and a heavy rectangle is no exception), bolt down the two included ground anchors, and it should sit dead still under a jumper.

Here’s where we have to be straight with you, though. ACON does not publish the frame steel-tube gauge for the X, or for any other line they make. We checked. It isn’t on the product page, it isn’t in the downloadable docs, it isn’t in the Amazon listing. Because our scoring won’t credit a spec we can’t verify, we score the frame component at floor and flag the gap right here in the review. We don’t think the frame is weak. The 661 lb shipping weight, the 10-year frame warranty, and the Super X-Frame design all point the other way. But “we think it’s probably fine” isn’t the same as a published 2.5mm wall thickness, which is what AlleyOOP gives you on the PowerBounce, so if hard, verifiable frame numbers are how you make decisions, you should weigh that.

Bounce and the Adjustable Height

This is the part of any ACON review where the tone changes, and the X earns it. The 118 working X Performance Springs are 9.6 inches long, galvanized against rust, and they’re tuned for the kind of jumper who’ll actually use the X for what it’s for. On a 17ft rectangle that’s a healthy spring count at a healthy length, and the rigid frame means the energy goes up rather than sideways.

But the real story is the 3-way height. This isn’t a gimmick, it’s the feature no competitor in this price band matches:

1. 2 ft (toddler) height, per-user limit 80 lbs. The deck is low, the bounce is gentle, and a small child can be on it without the trampoline launching them. This is the setting that makes the X a “the whole family uses it” buy. 2. 3.5 ft (standard) height, per-user limit 260 lbs. The default. This is where most jumpers spend most of their time, and 260 lbs comfortably covers teenagers and most adults. 3. 4 ft (performance) height with the optional kit, per-user limit 330 lbs. The deck goes up, the geometry changes, and the bounce gets the responsive, high-feedback character a backyard gymnast wants for chaining tricks. This is the setting that justifies the “developed with Olympic gymnasts” line.

One trampoline, three personalities. A toddler in the morning and a teenager doing seat drops in the afternoon, on the same frame, with the manufacturer’s blessing on the weight limits at each height. That’s a genuinely different proposition from a fixed-deck rectangle, and it’s the single best reason to choose the X over the cheaper ACON Air 16 Sport HD, which is an excellent trampoline but a one-height trampoline.

Worth saying clearly so nobody buys it expecting the wrong thing: the X adjusts height, not spring tension. If what you actually want is the ability to dial the bounce from soft to firm without touching the deck, that’s the AlleyOOP PowerBounce 10×17 with its three PowerArm settings, not the ACON X.

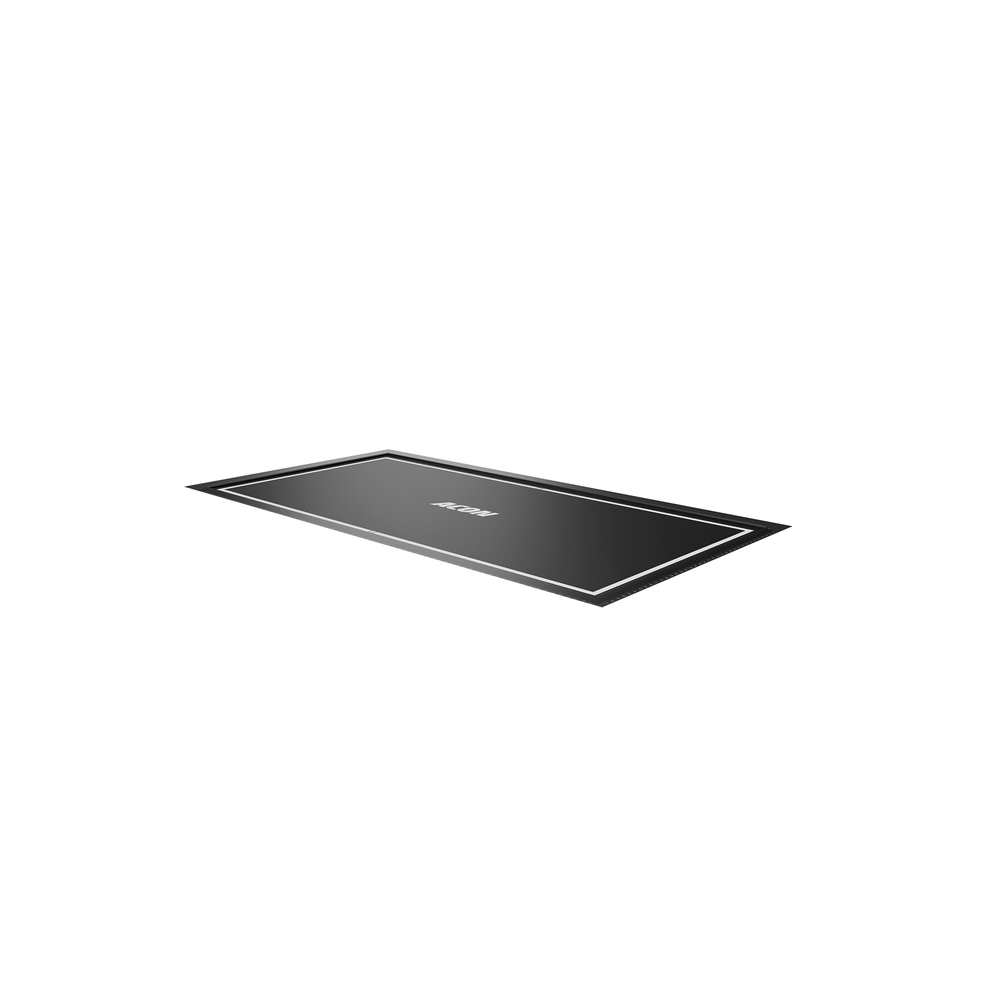

The Mat

UV-treated cross-sewn polypropylene, 10-row stitched. That’s the construction you find on the most durable trampoline mats on the market, and it’s what ACON uses across their better lines. The jumping surface measures 167.3 by 84.2 inches, which works out to roughly 13.9 by 7 feet of actual bounce area inside the springs. That’s the number that matters for planning what you can do up there, and it’s plenty for tumbling runs.

The mat carries a 5-year warranty, which matches the springs and is at the better end of the residential market. Polypropylene cross-sewn construction is the kind of thing that quietly outlasts everything else on the trampoline except the frame, and 10 rows of stitching is the spec you want to see. No complaints here.

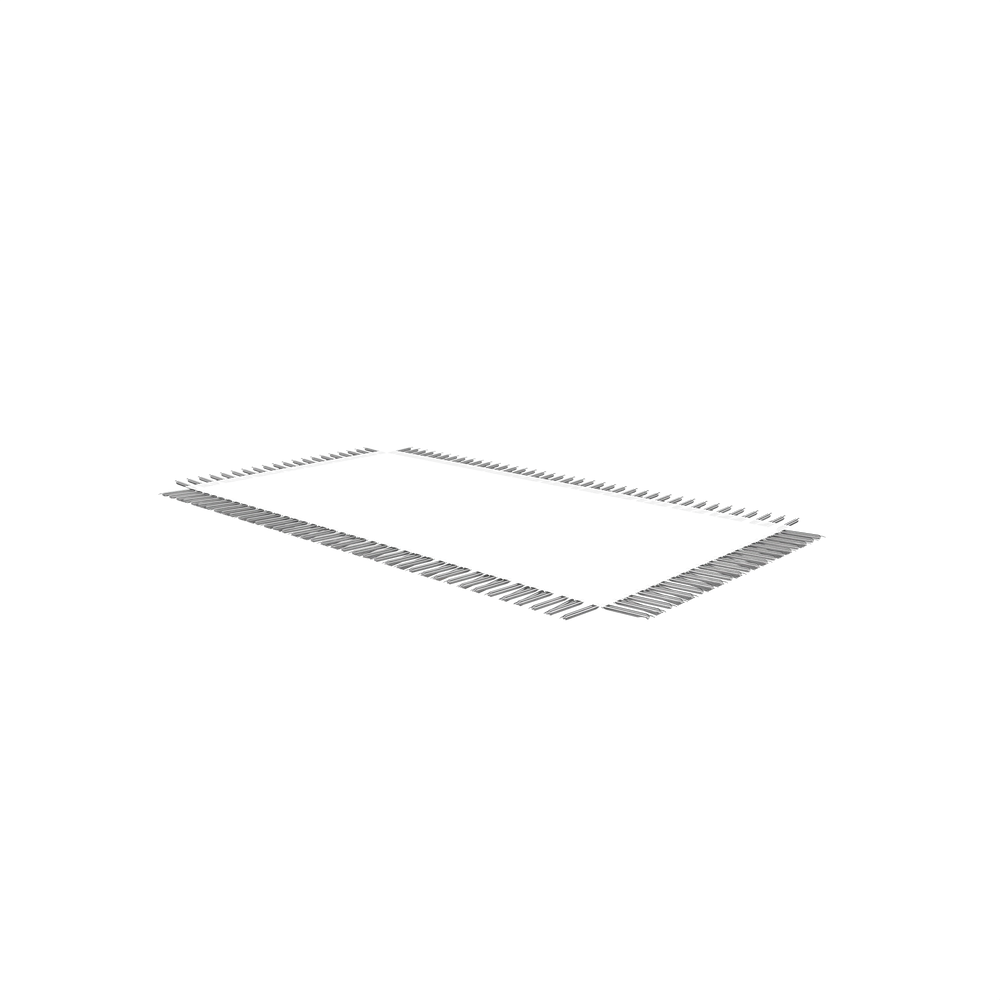

The Springs

120 X Performance Springs in the box, 118 of them load-bearing and two held back as spares (a small thing, but a nice one, because the spare you have is worth ten of the spare you’d have to mail-order). Each is 9.6 inches long and 1.2 inches in diameter, galvanized steel inside and out for rust resistance. ACON doesn’t publish the inner-versus-outer row breakdown, so we can’t tell you exactly how they’re laid out, but the headline figures are strong for this size of frame.

The 5-year spring warranty is the standout. Five years of cover on springs is rare, and it beats a lot of the premium field. Springs are a wear part on any trampoline, and that warranty is ACON putting its money where its marketing is. We score the springs component high, in the low-to-mid 80s, and it’s one of the trampoline’s clearest strengths.

Safety

Same caution we put in every trampoline review, because it doesn’t stop being true: trampolines carry risk no matter how well they’re built, and a rectangle in the gymnastics class carries it more than most, because the people drawn to it are the people doing harder things. The X does a lot to manage that risk, but supervision and one-jumper-at-a-time are still on you, not on the equipment. ACON, like every responsible manufacturer, recommends a single jumper at a time even though the 3,000 lb structural capacity means multi-jumper sessions aren’t going to bend the frame.

What ACON brings to the safety side is mostly the enclosure, and it’s the most genuinely differentiated thing on the whole trampoline.

Enclosure

ACON calls it a “zero-gap” enclosure, and it’s patent-pending. The idea is that the net seals directly to the frame so there’s no gap between the mat edge and the netting for a foot or a limb to slip through, which is the failure mode of a lot of conventional enclosure designs where the net attaches to poles set back from the frame. The pole attachment points are flexible, designed to give rather than snap on impact. On paper this is a real improvement over the loose, pole-cover-dependent nets we’ve griped about on older ACON rectangles.

We have to flag two unknowns, though, and they’re the reason we don’t score the enclosure higher than the low 70s. ACON does not publish how many poles the enclosure uses on the X. And they don’t publish the specific mesh material of the net, only that it’s UV-protected. Both of those are things a buyer at this price ought to be able to look up, and right now you can’t. The zero-gap design is a real, patentable idea and we credit it. The undisclosed pole count and net material keep the ceiling down.

Padding

The safety pad is 1.2 inches thick with a UV-treated PVC cover, and it sits over the spring zone the way it should. That’s a perfectly adequate pad. We’ve seen thicker on some competitors, and the pad is the part of any trampoline most likely to wear out first under UV and weather, which is exactly why its warranty is the short one in ACON’s table at 2 years. That’s industry-typical, but it means budgeting for a replacement pad somewhere around the 2-to-4-year mark is just realism, not pessimism. Plan for it.

What’s in the Boxes

You get everything you need to build the trampoline and a couple of things you’ll be glad of later. Frame, mat, the full set of 120 springs, the safety pad, the zero-gap enclosure net, an adjustable ladder (which you’ll want, because even at the standard 3.5 ft deck the mat is a long step up), two ground anchors, the assembly tools including a spring pull tool, and those two spare springs. ACON ships big trampolines in multiple boxes, so expect a delivery that takes up the garage for a day or two.

Assembly

Budget the better part of a day, get a second adult, and accept up front that this is the “some assembly required” of trampolines, not the “snap two halves together” kind. The frame and mat go together methodically. The enclosure, as on basically every netted trampoline ever made, is where the afternoon goes, threading poles and tensioning netting and discovering muscles you forgot you had. The spring pull tool in the box is not optional equipment, it’s the thing that keeps the job from being miserable. ACON’s instructions are generally clear, but at 661 lbs of components you do not want to bolt something on backwards and have to undo it. Pre-sort the hardware. Pick the final spot before you start, because once it’s built and anchored you’re not casually nudging this into a corner. (Yes, it has a bit of Scandinavian flat-pack energy to it. No, there is no tiny hex key you’ll lose under the couch, because ACON includes the tools. Small mercies.)

Who This Is For

• Multi-user gymnastics families. Mixed-age kids who’ll all use the same trampoline. The 3-way height adjustment matters more for you than for anyone else, because it’s the feature that makes one trampoline work for a toddler, a tween, and a teenager. This is the buyer the X was designed around.
• Serious recreational gymnasts. Backyard tricks practitioners who can’t justify a true commercial gym trampoline but want a clear step up from a recreational rectangle. The 4 ft performance height with the kit is the setting you’ll live in.
• Premium-buyer families with a long planning horizon. Parents budgeting four figures on something expected to last a decade, with kids in the 5-to-15 range who’ll grow into the higher deck settings over time. The X is a buy-once piece of kit if you treat it like one.
• Upgrade buyers from an older ACON Air rectangle. Existing Air owners who’d rather move up the range than switch brands. The X-line warranty resets, and the adjustable height is a real generational improvement, not a cosmetic refresh.

Who This Is NOT For

• Anyone whose budget tops out under premium tier. There’s no Amazon discount that quietly brings the X within reach, it’s a four-figure trampoline at either store. If you’re spending less, you’re shopping a different class of trampoline, and that’s fine, just not this one.
• Buyers who want a quick, casual round trampoline. The rectangle layout, the 3-way adjustment, the gymnastics positioning, it’s all overkill for “the kids want to bounce in the garden.” Look at the ACON Air 15ft round instead, it’s the right tool for that job.
• Buyers who need certification by specific standard number in writing. ACON states ASTM-certified and CE-certified, but does not publish which specific standard numbers. If you need that documented (a school, a club, an insurer), confirm directly with ACON before buying, or look at a brand that publishes standard numbers on the listing.
• Buyers with small yards. A 17 x 10 ft frame plus 5 ft of clearance on every side means a minimum clear yard footprint around 27 x 20 ft, with nothing overhead. Measure before you fall in love with it.
• Buyers who want tunable bounce stiffness. The X has three deck heights, not three spring tensions. If you want to dial the bounce feel without changing the deck, the AlleyOOP PowerBounce 10×17 is your trampoline.

How It Compares

Three of those four trampolines fit the same 17 x 10 ft footprint at the same premium price tier, which means if you’ve already decided you want a trampoline this size, you’re not really choosing on dimensions. You’re choosing on bounce philosophy.

The ACON Air 16 Sport HD is the price-conscious sibling, and it’s a very good trampoline. More springs (140 versus 120) at a slightly longer 10 inches, the same generous warranty structure, the same Finnish build quality. What you don’t get is the Super X-Frame rigidity, the zero-gap enclosure, or the 3-way height. If you want a quality 17ft rectangle and you don’t need the gymnastics-tier features, the Air 16 saves you a meaningful amount of money and you won’t feel short-changed. Buyers who’d rather stay in the ACON family but step down in size should look at the smaller rectangle, the ACON Air 13 Sport HD, which is the 8.5 x 13.5 ft option in the same line.

The AlleyOOP PowerBounce 10×17 is the X’s most direct rival at the top of the market, and the two solve different problems. AlleyOOP’s trick is tunable spring stiffness, three PowerArm settings that change how the bounce feels without touching the deck. ACON’s trick is the adjustable deck height, which changes the per-user weight ceiling and the bounce geometry but not the spring tension. AlleyOOP also publishes its frame gauge and carries a lifetime frame warranty, both points in its favour for a spec-driven buyer. ACON answers with the zero-gap enclosure and the toddler-through-gymnast height range. Genuinely a coin toss between two excellent trampolines, decided by which feature you actually need.

And then Springfree, which throws the whole premise out. No metal springs at all, fiberglass rods below the mat, frame outside the jumping zone. It’s the safest residential design on the market and it’s a good trampoline, but the bounce is softer and less responsive than any spring system, and a backyard gymnast will feel that immediately. If safety is your single overriding priority and you’ll trade rebound performance for it, Springfree. If bounce quality and athletic feel come first, the ACON X.

For more, see our full rectangular trampolines category, and if you want the brand context, the ACON brand page covers the rest of the Air and X lineup.

The Price: Is It Worth It?

Here’s the value math, now that we’ve got the price straight. ACON’s own store and the Amazon listing both put the X 17ft in the four-figure bracket, within about a hundred dollars of each other, so there’s no channel arbitrage to chase. At that price, the X is competing head-on with the AlleyOOP PowerBounce and the rest of the premium field, and the value verdict is “reasonable, not exceptional”. You’re paying a top-tier price for a top-tier trampoline, with one disclosed-spec gap (the frame gauge) holding it back from a perfect score.

We’re deliberately not quoting a live figure, because prices move and a stale number in a review is worse than no number, but the shape of it doesn’t change much: you’re paying full freight whether you buy from ACON or from Amazon. There’s no bargain hiding here. What you get for that money is the Super X-Frame, the 5-year spring warranty, and the 3-way height adjustment, and whether that bundle is worth top-tier money is the question this whole review is trying to answer. For a mixed-age family or a serious backyard gymnast, we think it is. For most other buyers, the cheaper ACON Air 16 Sport HD gets you most of the way there for less.

One more piece of honesty, the same one we put in every ACON review: this is designed in Finland and manufactured in China. ACON’s quality oversight is real, and the build reputation across their range backs that up. But if you’re shopping specifically for “European-made”, know that the X is designed there and built elsewhere. We don’t think that’s a knock. We think you should hear it plainly rather than read past it.

Our Verdict

The ACON X 17ft is the trampoline ACON builds for people who’ve stopped thinking of a trampoline as a toy. The Super X-Frame, the 118-spring 9.6-inch setup, the cross-sewn polypropylene mat, and especially the 3-way adjustable height add up to a versatile, capable trampoline that one household can grow into over a decade. The 5-year spring warranty is best-in-class. The zero-gap enclosure is the most differentiated safety feature on any rectangle we cover.

We score it 6.5 out of 10, and the limiting factor is the frame, not because we think the frame is weak but because ACON won’t publish the steel-tube gauge and our methodology doesn’t credit specs we can’t verify. That’s the one thing keeping this off the top shelf of our scoring. Combined with a couple of other undisclosed numbers (enclosure pole count, net mesh material), it’s a pattern: ACON builds beautifully and documents stingily.

It’s not for everyone. If your budget’s below premium tier, this isn’t your trampoline. If you want a casual round, the ACON Air 15ft round does that job better. If you need tunable bounce stiffness, the AlleyOOP PowerBounce 10×17 is the pick. And if you need certification by specific standard number in writing, you’ll have to chase ACON directly for it.

But if you’re a mixed-age family that wants one trampoline for the toddler and the teenager both, or a backyard gymnast who wants the closest thing to a real gymnastic trampoline short of going commercial-grade, the ACON X earns its place. You’ll pay top-tier money for it from either store, and for the right buyer it’s worth it.

Frequently Asked Questions

Q: What’s the difference between the ACON X and the ACON Air rectangle line?

A: The ACON X is the newer, higher tier. The Air rectangle (Sport HD, HD PRO) is recreational-family-grade, with 108 to 140 standard springs, a fixed jumping height, and a conventional enclosure. The X uses a rigid Super X-Frame, 120 X Performance Springs, a 3-way adjustable jumping height (2 ft, 3.5 ft, or 4 ft with the optional kit), and the patent-pending zero-gap enclosure that seals the net to the frame. If you’re buying for backyard gymnastics, advanced tricks, or a family that wants one trampoline to span toddler-through-teenager use, the X is purpose-built for it. If you mostly want a high-quality recreational rectangle, the Air Sport HD is excellent and saves you serious money.

Q: What weight capacity does the ACON X 17ft handle?

A: It depends which of the three jumping heights you’ve set. At the 2 ft toddler height, the per-user limit is 80 lbs. At the standard 3.5 ft height, it’s 260 lbs per jumper. With ACON’s optional height-extension kit raising the deck to 4 ft, the per-user cap rises to 330 lbs. The trampoline’s overall structural capacity is rated at 3,000 lbs static, so the frame isn’t bothered by multi-jumper sessions, but ACON, like every responsible manufacturer, still recommends one jumper at a time for safety.

Q: Can the ACON X be used for gymnastics practice?

A: Yes, and that’s a stated design intent. ACON developed the X line in partnership with Olympic-level gymnasts, and the rigid Super X-Frame plus the 4 ft performance height (with the kit) gives the bounce response gymnasts need to chain moves. It isn’t a true Olympic-spec gymnastic trampoline (those are made by Eurotramp, cost several thousand dollars more, and belong in a sprung gym), but for serious backyard gymnastics practice the X is among the best options short of going commercial-grade. Pair it with a separate landing mat for skill drills and you’ve covered most home-practice scenarios.

Q: What’s the actual ACON X 17ft jumping surface size?

A: The frame’s outer footprint is 17 x 10.1 ft (about 5.2 x 3.0 m) with the enclosure. The actual jumping surface inside the springs is 167.3 x 84.2 inches, which works out to roughly 13.9 x 7 ft. That’s the area you actually bounce on. When you’re planning yard space, add at least 5 ft of clearance on every side, which puts the minimum clear yard footprint around 27 x 20 ft, with nothing overhead.

Q: Does the ACON X come in different sizes or just 17ft?

A: As of May 2026, ACON’s US X line is sold as the 17ft model only. The line is new (it launched in 2024) and ACON hasn’t announced smaller X-line sizes for the US market. If you need a smaller rectangle in the same brand family, the ACON Air Sport HD comes in 13ft (8.5 x 13.5 ft) and 16ft (10 x 17 ft), and those are the recreational-tier siblings.

Q: How does the warranty on the ACON X compare to other premium trampolines?

A: ACON X has a 10-year frame warranty, 5 years on springs, 5 years on the jumping mat, 2 years on the safety pad, and 1 year on the net, ladder, and anchors. The 5-year spring warranty matches AlleyOOP and is at the strong end of the market. The 2-year pad warranty is the industry-typical weak point, pads on every brand wear out in roughly 2 to 4 years of heavy use, so plan for a replacement. The frame warranty at 10 years is solid but not class-leading; AlleyOOP’s lifetime frame warranty edges it. Overall, the ACON X warranty is competitive at this tier without being remarkable.
